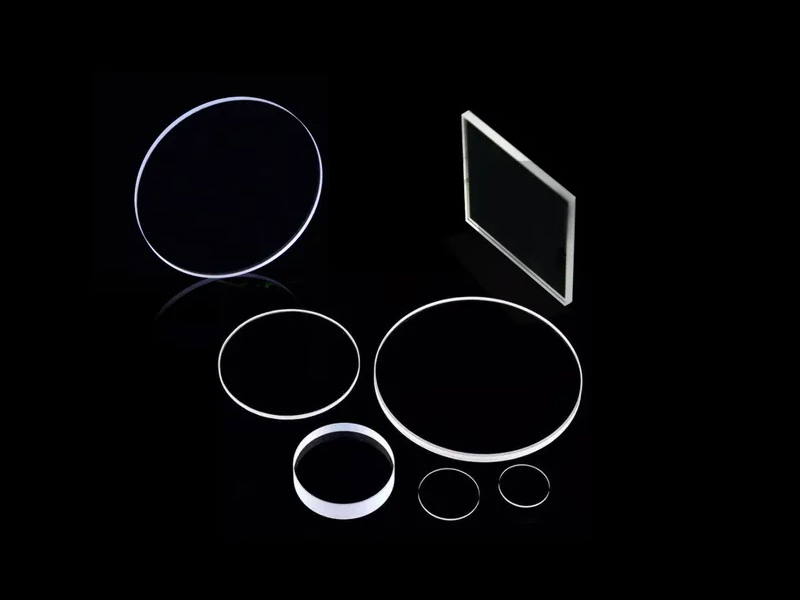

Accuray offers all kinds of optical windows according to customers’ requirement:
|
Parameter
|
Specification
|
|
Material
|
Optical Glass: H-K9L, N-BK7, Fused Silica, Brofloat, etc.
Optical Crystal: Sapphire, CaF2, MgF2, etc.
|
|
Dimension (mm)
|
f2.0～f350.0
|
|
Thickness (mm)
|
0.5～50.0
|
|
Dimension Tolerance (mm)
|
+0.0/-0.1 (General), +0.0/-0.02 (High Precision)
|
|
Thickness Tolerance (mm)
|
±0.2 (General), ±0.005 (High Precision)
|
|
Clear Aperture
|
>80% (Small Size), >95% (Large Size)
|
|
Parallelism
|
3 min. (General), 3 sec. (High Precision)
|
|
Surface Quality
|
60/40 (General), 10/5 (High Precision)
|
|
Flatness (per 25mm@633nm)
|
λ /4(General), λ/30 (High Precision)
|
|
Bevel (face width x 45。)
|
<0.25mm
|
|
Coating
|
According customer requirement
|
