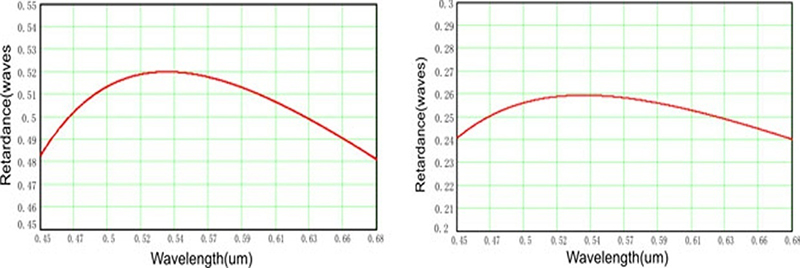

Unlike standard waveplate, Achromatic Waveplate( AWP) provide a constant phase shift independent of the wavelength of light that is used. This wavelength independence is achieved by using two different crystalline materials to yield quarter- or half-wave retardation over a broad spectral range. The Retardation tolerance of our AWP is better than λ/100 over the entire wavelength range. The flat response of an AWP is ideal for use with tunable lasers, multiple laser-line systems and other broad spectrum sources.
|
Attribute
|
Specification
|
|
Material
|
Crystal Quartz&MgF2
|
|
Typical Diameter (Φmm)
|
10.0, 12.7, 15.0, 20.0
|
|
Diameter Tolerance (mm)
|
+0.0/-0.2
|
|
Wavefront distortion
|
λ/4@633nm
|
|
Retardation
|
λ/2 and λ/4
|
|
Retardation tolerance
|
<λ/100 over wavelength range
|
|
Parallelism
|
<5 arc second.(General） , <3 arc second. (High Precision)
|
|
Surface Quality
|
40/20
|
|
Clear Aperture
|
Central 90%
|
|
Coating
|
<0.5% @wavelength range
|
