Broadband Glan Thompson Polarizer is made of two α-BBO prisms cemented together. Unlike other types of α-BBO polarizer and Calcite Polarizer which are used from about 190 nm to 900 nm and 350 nm to 2300 nm respectively, this broadband polarizer has a wide rang of wavelength from 200nm to 3300nm. Also the broadband polarizer has a wide acceptance angle whose field angle Fo and Fe is shown in below figure.
|

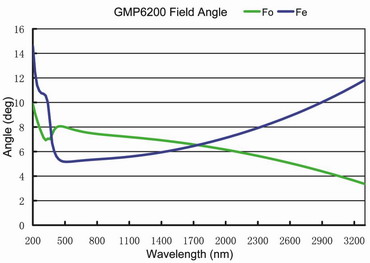

Angular Field vs wavelength
|

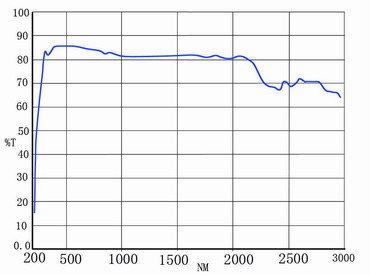

Transmission (T%) vs Wavelength
|
 |
 |
|
Material:
|
α-BBO
|
Flatness: |
λ/4@633nm
|
|
WavelengthRange:
|
190～3300 nm
|
Damage Threshold:
|
>200 MW/cm2
|
|
Ectinction Ratio:
|
<5x10-6
|
Coating:
|
Single MgF2
|
|
Surface Quality:
|
20-10
|
Mount:
|
Black Anodized Aluminium
|
|
Beam Deviation:
|
Typical: <3', High Precision: <3"
|
||
| P/N# | Extinction Ratio | Angular Field (deg) | CA φa (mm) | O.D. φd (mm) | L+/-0.1 (mm) |
| GMP6206 | <5x10-6 | See above | 5 | 15 | 14 |
| GMP6208 | 7 | 25.4 | 17 | ||
| GMP6210 | 9 | 25.4 | 21 | ||
| GMP6212 | 11.4 | 25.4 | 26 | ||
| GMP6215 | 13.5 | 30 | 31 | ||
| GMP6220 | 18 | 38 | 40 |
