Quartz Silica Wedge Depolarizer

Product Details

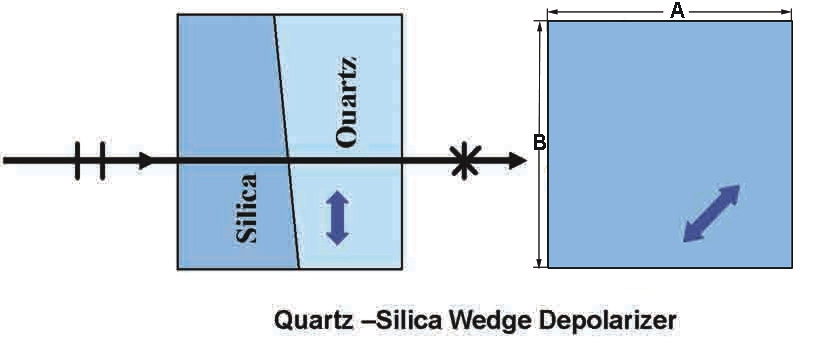

This DQW series of depolarizer consists of a crystalline quartz wedge together with a compensating fused　silica wedge to correct the angular deviation. The optic axis of the quartz wedge lies in the plane of the　wedge and at 45 deg to the　input polarization. The result is then a variable retardation plate over the　aperture, which produces depolarization for all wavelengths. So, this DQW depolarizer is thus effective　with monochromatic light.

Standard Specifications

Spectral rang (nm): ---------------------------------- 220-1100,1100-2600
Diamter tolerance: ----------------------------------- +0.0/-0.2 mm
Surface Quality: -------------------------------------- 60/40
Flatness @ 632.8nm: ------------------------------- λ/8
Parallelism: -------------------------------------------- <1 min
Beam deviation: -------------------------------------- <3 min
Chip: ---------------------------------------------------- <0.2 mm
Chamfer (bevel): ------------------------------------- <0.5 mm x 45 deg
Peak transmission (%): ---------------------------- 92 (Uncoated)
Coating: ------------------------------------------------ uncoated
Mountter: ---------------------------------------------- unmounted
Max peak power (MW/cm²): --------------------- 300
Max cw power (W/cm²): -------------------------- 100

Coating: MgF2,Narrow Band or Broad Band AR coating are all available.
Mounter: Black anodized aluminum ring is avaiable.To order mounted depolarizers,simply add the Suffix M to the part no.

P/N#	Aperture		Thickness(mm)
P/N#	A (mm)	B (mm)	Thickness(mm)
DQW10	10.0	9.0	5
DQW12	12.7	11.5	5
DQW15	15.0	13.5	5
DQW20	20.0	18.5	5
DQW25	25.4	22.0	5
